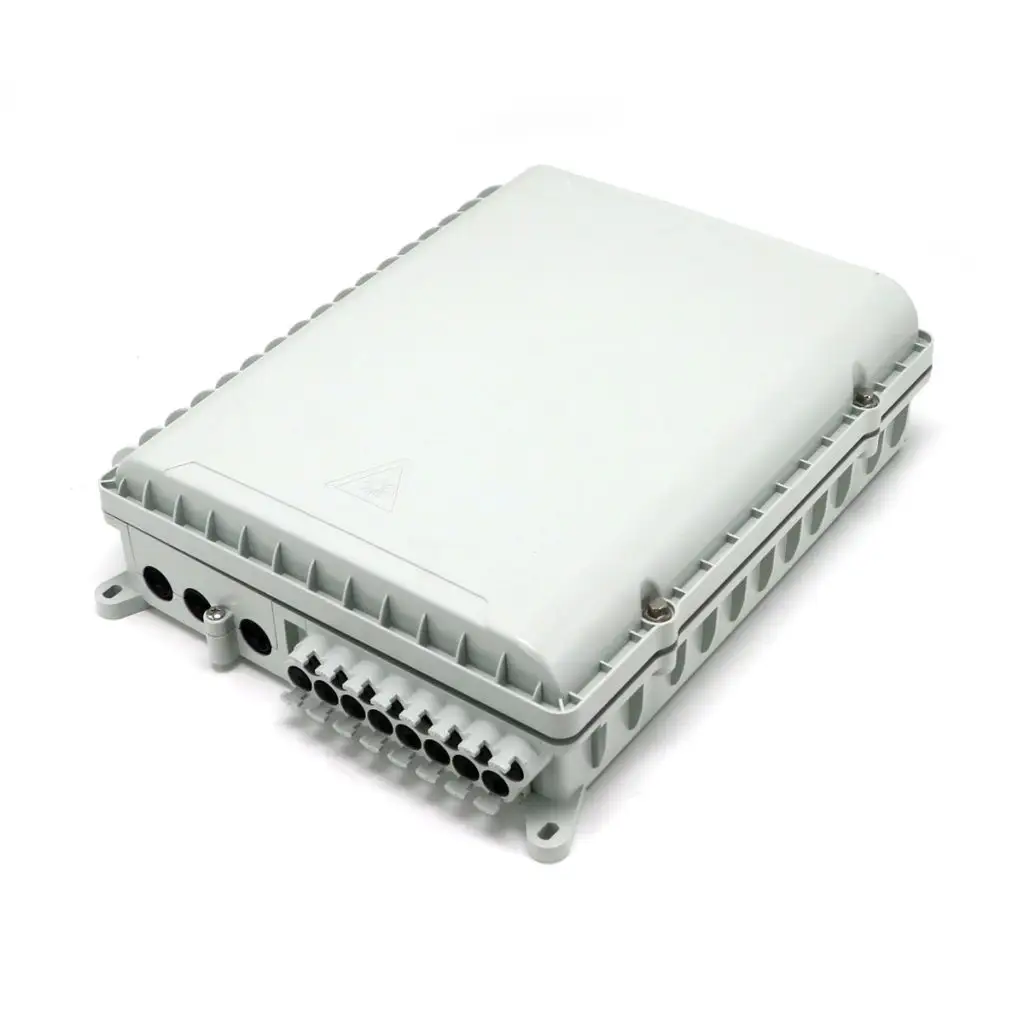

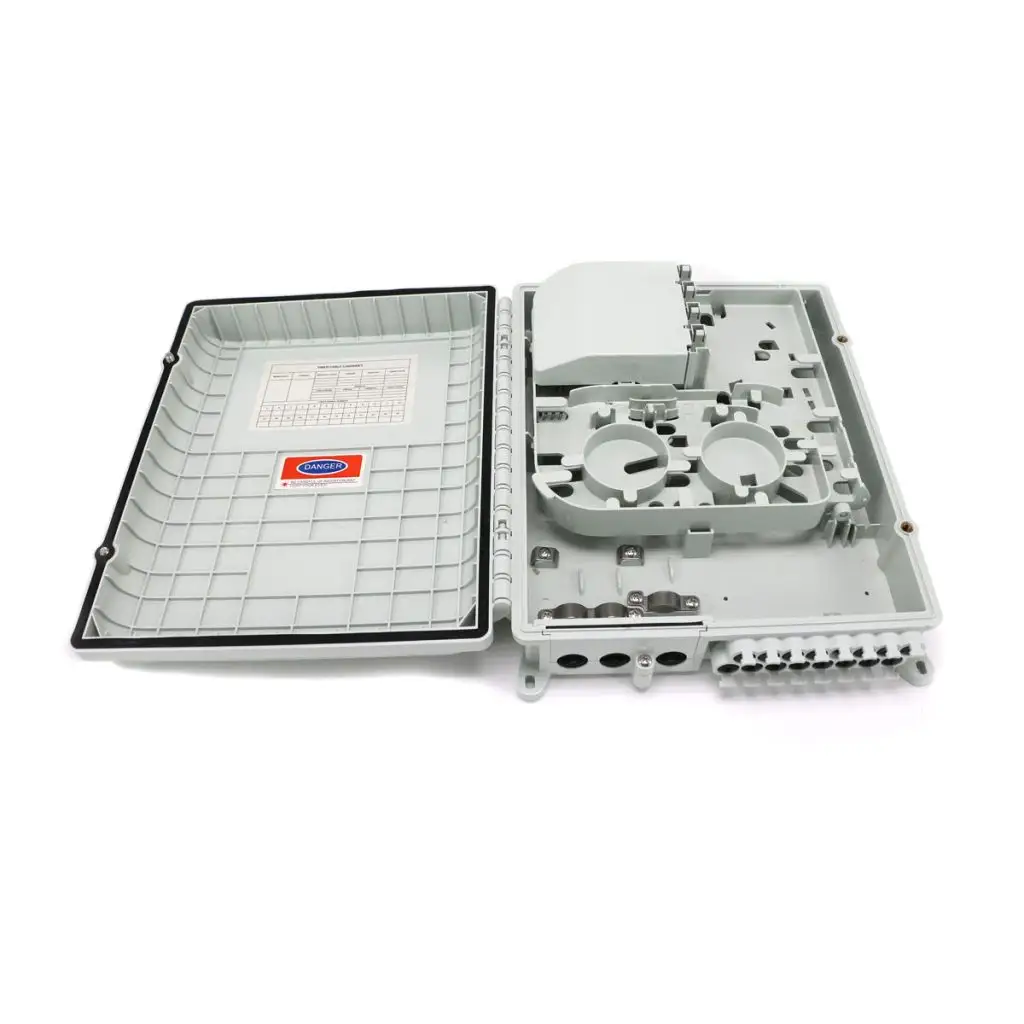

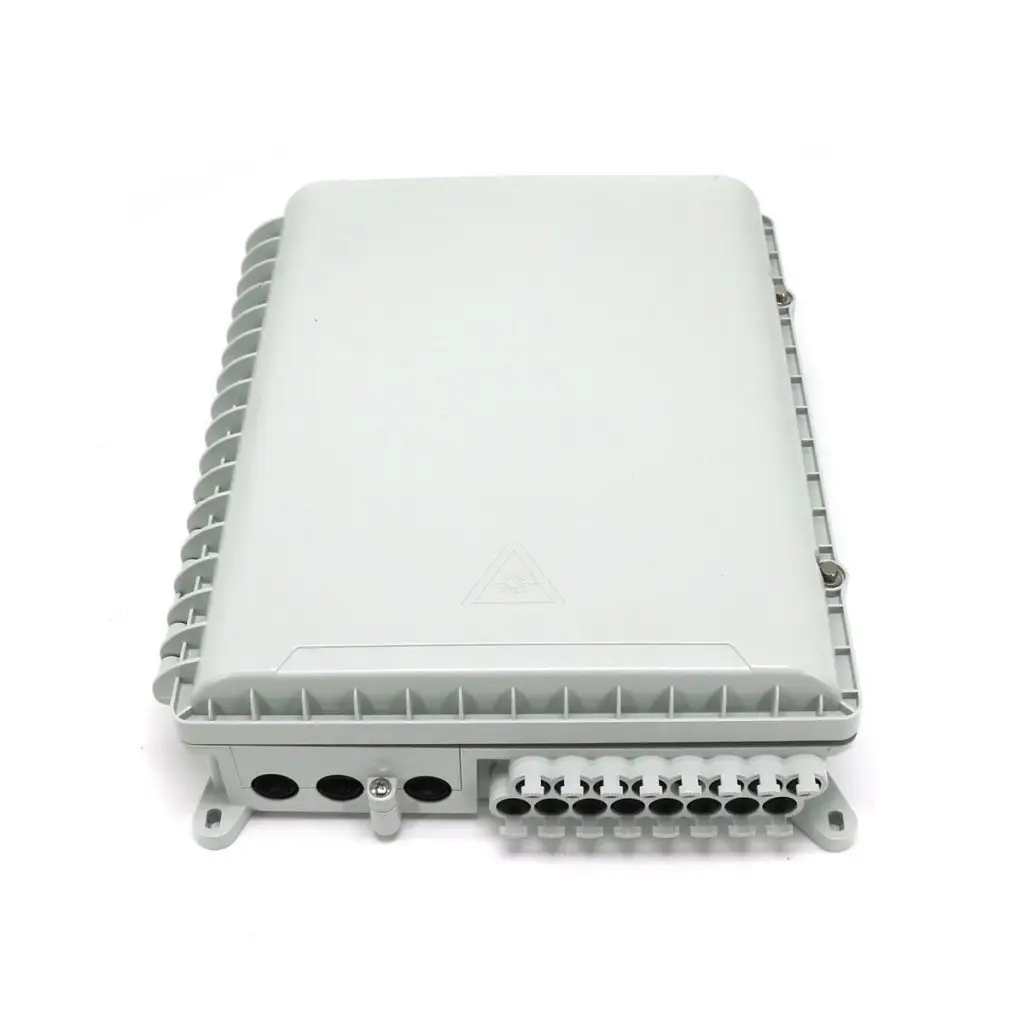

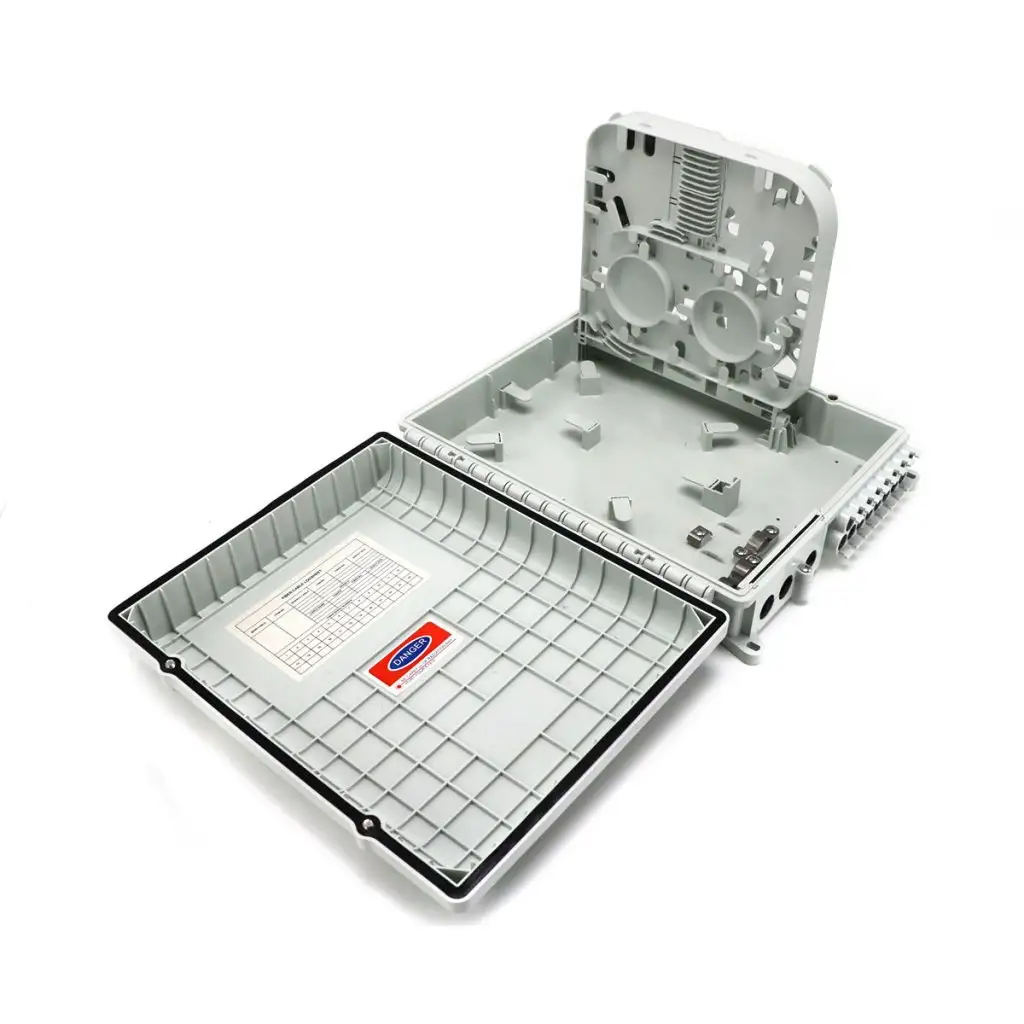

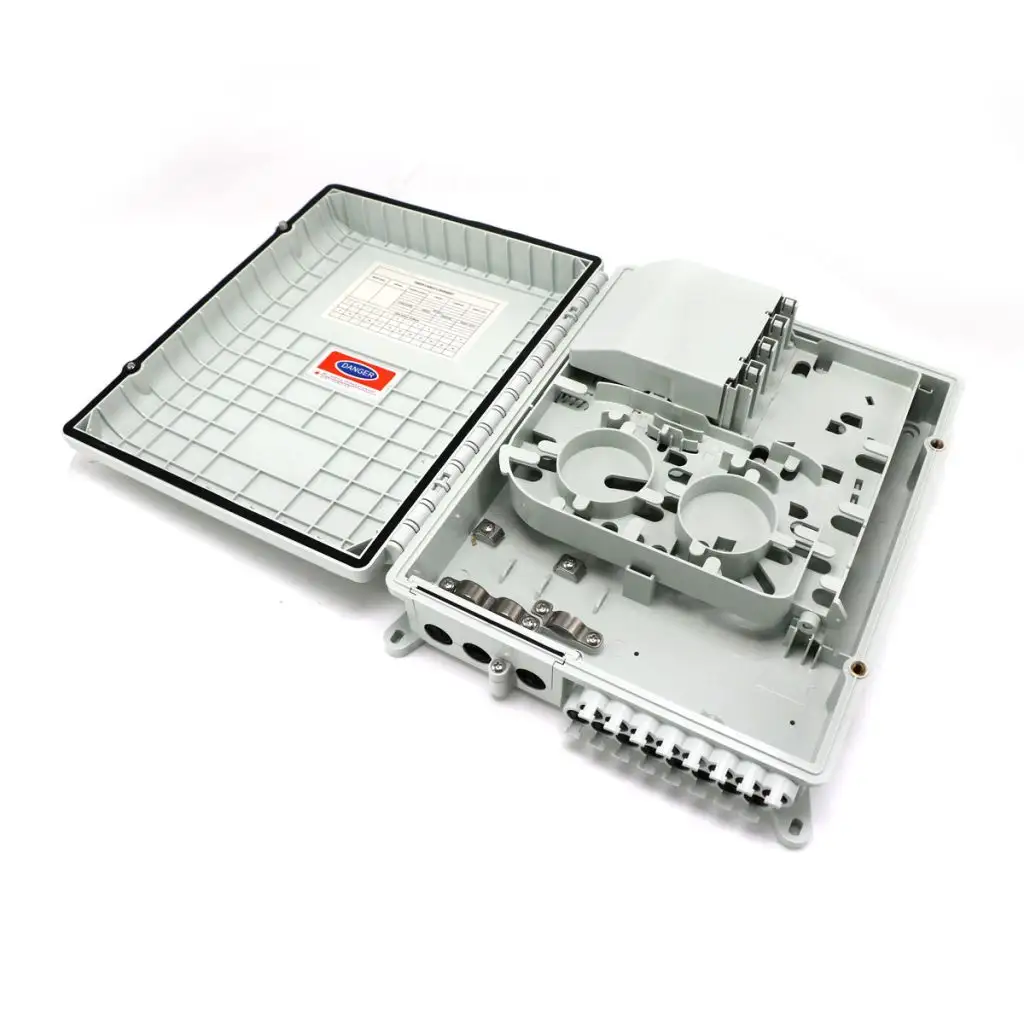

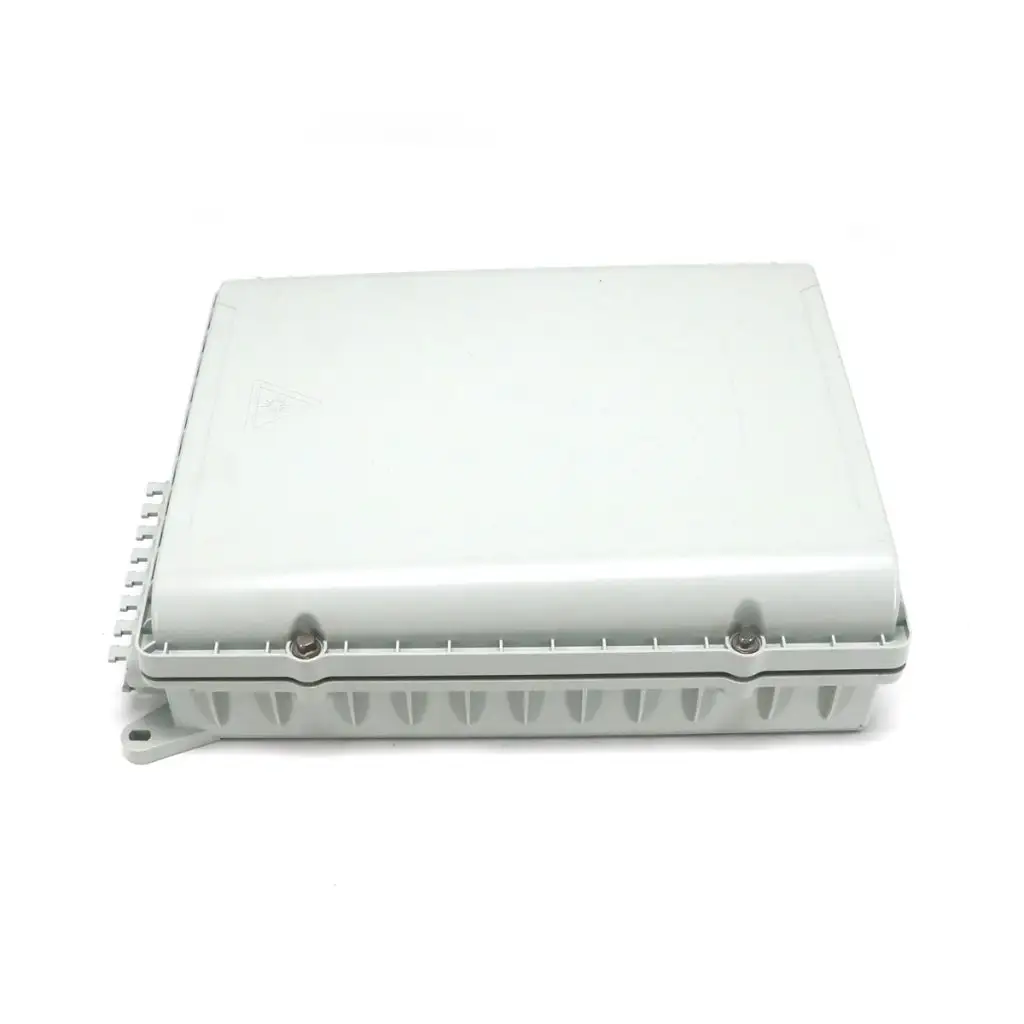

16 Ports Fiber Termination Box, Wall Mount Outdoor Enclosure
16 Ports Fiber Termination Box, Wall Mount Outdoor Enclosure
Overview The 16 Ports Fiber Termination Box supports the splicing and termination of up to 8 fibers and can accommodate a 1×16 PLC splitter for distribution to 16 drop cables. Designed for wall-mounted installations, this box is ideal for both residential and commercial FTTH deployments. Its waterproof IP65-rated design ensures superior performance even in harsh outdoor conditions. This compact and versatile unit supports SC/LC/FC connectors and is engineered to deliver clean fiber organization, reduce signal loss, and provide long-term service reliability.
Product Description
Key Features
Splitters for dividing a feeder fibre between several subscribers
Splice closures that keep a joint protected through its whole buried life
Terminal boxes providing the subscriber interface at the end of the drop
Frames for terminating, patching and testing the network
Enclosures for indoor, outdoor, buried, duct and aerial situations
Cable entry arrangements that seal around the cable, not only around the lid
Splice trays and management that keep fibres within their bend radius once the lid is closed
Mounting for wall, pole, cabinet and rack, as the situation requires
Specifications: 16 Ports Fiber Termination Box (FDB16C)
|
Parameter |
Value |
|
Material |
ABS Plastic |
|
Protection Grade |
IP65 |
|
Max. Fiber Capacity |
8 Fibers |
|
No. of Adapter/Ports |
8 SC Adapter Ports |
|
Compatible Adapters |
SC, LC (via plates), FC |
|
Splitter Accommodation |
1×8 or 1×16 PLC Splitter |
|
Inlet Port Diameter |
Φ3mm |
|
Outlet Port Diameter |
Φ7–Φ12mm |
|
Installation Type |
Wall Mount |
|
Dimensions (HxWxD) |
280mm × 220mm × 80mm |
|
Weight |
1020g |
Ideal for FTTH and Outdoor Fiber Networks
This 16 Ports Fiber Termination Box is a must-have for:
FTTH (Fiber to the Home) rollouts
Outdoor fiber optic distribution
Wall-mounted applications in residential and industrial zones
Use with optical CATV, broadband, and access networks
Why Choose Our 16 Ports Fiber Termination Box?
Wholesale at Factory Price – No middleman markup
Reliable Performance – Built to telecom-grade standards
Flexible Supply – Available in small batches or bulk orders
Global Support – We serve ISPs and distributors worldwide
Fast Delivery – Ready-to-ship inventory with fast lead time
